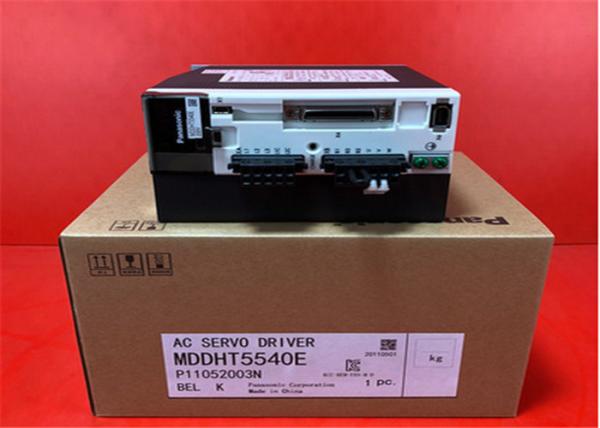

    Panasonic Servo AC 200 ~ 240VAC Supply 50A 240 V MDDHT5540 Industrial Servo Drives

    Ask Lasest Price
    Brand Name : Panasonic
    Model Number : MDDHT5540
    Certification : CE
    Price : Please contact me
    Payment Terms : T/T
    Supply Ability : 100
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

    Panasonic Servo AC 200 ~ 240VAC Supply 50A 240 V MDDHT5540 Industrial Servo Drives


    Panasonic Servo AC 200 ~ 240VAC Supply 50A 240 V MDDHT5540 Industrial Servo Motor


    • Part Number MDDHT5540
    • Product Servo Driver
    • Details A5 series
    • Speed, Position, Torque, Full-closed type
    • with the safety function
    • Product name MINAS A5 Family Servo Driver
    • Features Servo motor that bring out potential of the machine.

    Product Overview:


    Digi-Key Part Number

    1110-2991-ND

    Quantity Available

    6
    Can ship immediately

    Manufacturer

    Panasonic Industrial Automation Sales

    Manufacturer Part Number

    MDDHT5540

    Description

    SERVO DRIVER 50A 240V LOAD

    Manufacturer Standard Lead Time

    11 Weeks

    Detailed Description

    Servo AC 200 ~ 240VAC Supply 50A 240 V Load

    Product AttributesSelect All
    CategoriesMotors, Solenoids, Driver Boards/Modules
    Motor Driver Boards, Modules
    ManufacturerPanasonic Industrial Automation Sales
    SeriesMINAS A5
    Part StatusActive
    TypeModule
    Motor TypeServo
    Control / Drive TypeServo AC
    Number of Motors1
    Voltage - Load240 V
    Current - Output50A
    Wattage - Load1.5kW
    Voltage - Supply200 ~ 240VAC
    InterfaceRS-232, RS-485, USB
    Mounting TypeChassis Mount
    Operating Temperature0°C ~ 55°C
    Features-
    For Use With/Related ProductsMINAS A5 Series
    Weight3.9 lbs (1.8kg)

    Spec Detail

    Item

    Specifications

    Part NumberMDDHT5540
    DetailsA5 series
    Speed, Position, Torque, Full-closed type
    with the safety function
    Family NameMINAS A5
    SeriesA5 series
    TypeSpeed, Position, Torque, Full-closed type
    FrameD-Frame
    Frequency response2.3 kHz
    Control methodPosition control, Velocity control, Torque control, and Full-closed control
    Safety Functionwith the safety function
    Power device Max. current rating50A
    Current detector current rating40A
    Supply voltageSingle/3-phase 200 V
    I/F Classification of typeAnalog/Pulse
    Dimensions (W) (Unit: mm)85
    Dimensions (H) (Unit: mm)150
    Dimensions (D) (Unit: mm)170
    Mass (kg)1.8
    EnvironmentFor more details, please refer to the instruction manual.


    Terms:


    We ships worldwide and accepts T/T and Paypal.
    All items are subject to availability and passing our QA testing and inspection.
    Turnaround Time:
    Standard order processing is 1-2 business days plus shipping method chosen.
    Rush and off-hours service available for an additional fee
    Packaging and Handling:
    Items are safely packaged in custom shipping cartons for protection.
    Shipping:
    We ship worldwid use UPS, FedEx, DHL, or Truck Freight when needed.
    Call to use a shipping service other than the ones listed.
    International Customers are responsible for all Customs fees, VAT, and other fees applied by their
    respective countries.
    All shipments are fully insured.

    Our advantage Products:
    【Honeywell】Module DCS / PLC
    【Emerson】DeltaV Module / Servo Motor
    【ABB】Input Output Module
    【AB】Module / Touch Screen
    【Rosemount】Pressure and Temperature Transmitter
    【Yokogawa】Pressure Transmitter
    【Yaskawa】Servo Drive / Servo Motor
    【Mitsubishi】Servo Drive / Servo Motor
    【GE】IC69 Series PLC/ Fanuc Servo Motor and Drive
    (Modicon,SMC,SICK,NORGREN,Siemens etc.)
