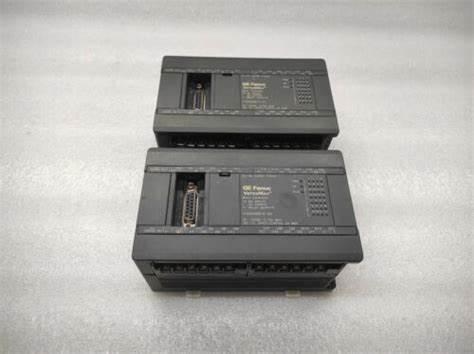

    IC200UDR0103 GE Fanuc VersaMax Micro 28 point PLC 24Vdc Out (11) Relay Out 24Vdc

    IC200UDR010 GE Fanuc VersaMax Micro 28 point PLC 24Vdc Out (11) Relay Out 24Vdc

    Description for GE Fanuc IC200UDR010

    Weight 500 grams (1.10 lbs.)
    Inputs Sixteen 24Vdc positive/negative logic input circuits
    Outputs Eleven normally-open 2 amp relay circuits and One DC Output (Q1)
    High-Speed Counters Up to four Type A or one Type A and one Type B
    +24Vdc Output Power Supply 200mA maximum (for input circuits and user devices)
    Thermal Derating IC200UDR010: none. IC200UDR228: no derating to 45 degrees C. Above 45
    degrees C, number of points on at the same time must not exceed 50%.
    DC Power Specifications
    Range IC200UDR010: 24Vdc -20%, +25%
    IC200UDR228: 9.2 to 30Vdc
    Hold-up IC200UDR010: 10ms at 19.2Vdc
    IC200UDR028: 5ms
    Inrush Current IC200UDR010: 1 Amp maximum at 30Vdc
    IC200UDR228: 13 Amps at 12Vdc, 27 Amps at 24Vdc
    Inrush Time 10mS for 1 A
    Input Current IC200UDR010: 0.30 Amp typical at 24Vdc
    IC200URD228: 1.1 Amp typical at 12Vdc; 0.55 Amp typical at 24Vdc
    Input Power Supply Rating 8W
    DC Input Specifications
    Number of Inputs 16
    Rated Input Voltage 24 volts DC
    Input Voltage Range 0 to 30 volts DC
    Input Current 7.5mA typical
    Input Resistance 2.8 kΩ
    Input Threshold Voltage ON: 15Vdc minimum, OFF: 5Vdc maximum
    Input Threshold Current ON: 4.5mA maximum, OFF: 1.5mA minimum
    Response Time 0.5 to 20ms configurable as regular input; 100µs as HSC input
    Isolation Voltage 1500V RMS field side to logic side, 500V RMS between groups
    DC Output Specifications
    Output logic Positive Logic
    Operating Voltage IC200UDR010: 24Vdc / 12Vdc / 5Vdc; IC200UDR228: 24Vdc / 12Vdc
    Voltage Range IC200UDR010: 24Vdc, +20%, -80%; IC200UDR228: 23.5 - 24.5Vdc
    Output Current IC200UDR010: 450mA; IC200UDR228: 100mA
    Maximum UL Pilot Duty Rating 0.75A at 24Vdc
    Maximum Resistive Load Rating 0.75A at 24Vdc; 0.5A at 12Vdc; 0.25A at 5Vdc
    Output Voltage Drop 0.3Vdc maximum
    Response ON: 0.1ms maximum (24Vdc, 0.2A), OFF: 0.1ms maximum (24Vdc, 0.2A)
    OFF state leakage 0.1mA maximum
    Isolation 1500Vac between field side and logic side, 500Vac between groups
    Fuse Output should be fused externally. Otherwise, a load short can





    OTHER SUPERIOR PRODUCTS

    Yasakawa Motor, Driver SG-Mitsubishi Motor HC-,HA-
    Westinghouse Modules 1C-,5X-Emerson VE-,KJ-
    Honeywell TC-,TK-GE Modules IC -
    ABB ModuleAB Module 1756-,1759- Tourch Screen 2711-
    Mitsubishi Drive MR- , Motor HA -,HCEmerson MoudlesVE- ,KJ -
    Fanuc motor A0-, DriveYokogawa transmitter EJA-
    Rosemount Transmitter 3051-Schneider Module 140-
    Panasonic Motor , Drive MH-Siemens Module 6ES-, Touch Screen 6AV-


    About GE Fanuc IC200UDR010

    6.11 IC200UDR010 28-Point Micro PLC, (16) 24Vdc In, (1) 24Vdc Out, (11) Relay Out, 24Vdc PS
    IC200UDR228 28-Point Micro PLC, (16) 24 VC In, (1) 24Vdc Out, (11) Relay Out,
    12/24Vdc PS
    VersaMax Micro PLCs IC200UDR010 and IC200UDR228 accept sixteen DC inputs and provide one DC
    output and eleven normally-open 2 Amp relay outputs. The only differences between these modules
    are their power supplies and the output current rating of their Q1 DC output. Micro-28 IC200UDR010
    uses +24Vdc nominal input power, and provides a 450mA, 24Vdc output. Micro-28 IC200UDR228
    uses +12/24Vdc nominal input power, and provides a 100mA, 24Vdc output.



    6.11.1 DC Power
    The DC power supply requires more current at startup voltage (approximately 4Vdc) than at rated
    input voltage. A minimum of 2.0 A is required to start up the DC power supply.
    If configured to disable power-up diagnostics, the PLC begins logic solution 100ms after the voltage
    level of the power supply input reaches and maintains nominal DC power. The power source for the
    PLC must have enough transient current capability to support the inrush current of the power supply
    and to maintain an adequateVdc voltage level (see specifications for inrush requirements).



    6.11.2 DC Inputs
    The sixteen configurable DC inputs can be used as positive or negative logic standard inputs or up to
    three High-Speed Counter inputs. Inputs are compatible with a wide range of input devices, such as
    pushbuttons, limit switches, and electronic proximity switches.
    The Micro PLC’s +24Vdc supply can be used for input devices and to power the DC input circuits at
    about 7.5 mA per input. The combination of input circuit current and external device current must not
    exceed 200 mA.



    6.11.3 DC Output (Q1)
    The DC output circuit (Q1) can be configured to be a standard, High-Speed Counter, pulse train, or
    PWM output.



    6.11.4 Relay Outputs (Q2 – Q12)
    Eleven Form A relay outputs (SPST-single pole single throw) can control a wide range of load devices
    such as motor starters, solenoids, and indicators. The switching capacity of each of these circuits is 2
    amps. An external source of AC or DC power must be supplied to operate field devices. Relay outputs
    cannot be used as Pulse Train or PWM outputs.
