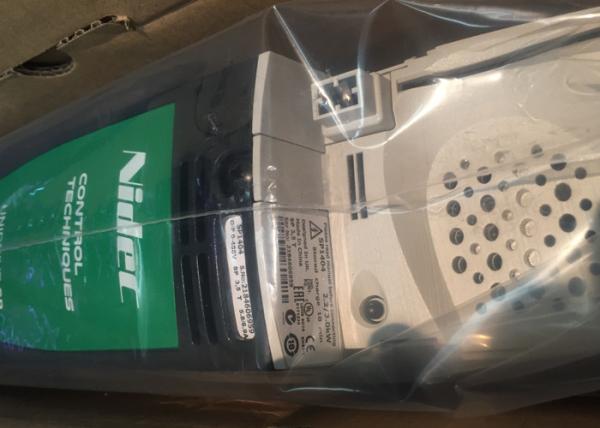

2.2KW Ac Motor Frequency Converter / Emerson CT Inverter SP1404
Unidrive
Description
The SP1404 is a 2.2kW, 5.8A, 380...480V AC inverter from the
Unidrive SP range manufactured by Control Techniques. As an
official Control Techniques distributor, Northern Industrial supply
the whole range of Unidrive SP VSDs, including options to expand
the functionality of the SP1404 VSD. Control Techniques design all
of their variable frequency drives to be easy to install and
commission, and the Unidrive SP is no different.
High Performance Motor Control
Take advantage of the several control modes included on the SP1404
and use your Unidrive SP to control induction, asynchronous servo
and synchronous servo motors By using the keypad, you can configure
your inverter to be operated in the following modes:
- Servo - Precision, dynamic control supporting a wide range of
rotary and linear motors
- Closed Loop Vector - Ultimate precision control of induction motors
offering full motor torque at zero speed
- RFC Mode (Rotor Flux Control) - Superior dynamic performance and
stability without a feedback device
- Open Loop Vector - Good open loop motor performance with minimum
configuration
- Open Loop V/F Control - A simple control algorithm that is ideal
for parallel motors
- Regenerative - Active front end control mode for harmonic
elimination and regeneration
Many Feedback Encoder Options
The Unidrive SP range has the hardware needed to connect to
virtually any feedback encoder type, which enables the designer to
select the most appropriate technology for the
application.Incremental - Provides a good balance of cost and
performance
- SinCos - Offers increased position resolution for precision and low
speed applications
- SSI - Offers absolute position feedback
- EnDat and HIPERFACE - These encoders transfer position data using a
high-speed communications network, often combined with SinCos
technology
Widest Range of System Integration Features
Select the level of integrated automation/motion control,
connectivity and I/O that you need by using the plug-in option
modules compatible with the Unidrive SP. SP1404 has room for three
option modules, which you can select from the huge array of system
integration features. Northern Industrial stock a wide range of
option modules that are available for immediate despatch.
- Input/Output options - Including SM-I/O 32, SM-I/O Plus, SM-I/O
Lite
- PLC/Motion functionality options - Including SM-Applications Lite
V2, SM-Applications Plus, SM-EZMotion, SM-Register
- Communications options - Including SM-EtherCAT, SM-LON, SM-Profibus
DP, SM-Interbus, SM-DeviceNet, SM-Ethernet, SM-CANopen, SM-SERCOS,
SM-CAN, SM-PROFINET
- Feedback options - Including SM-Universal Encoder PLus, SM-Encoder
Plus, SM-Resolver, SM-Encoder Output Plus
Simplify Set Up with a Smartcard
Commissioning new drives or backing up your parameter sets is made
easy thanks to the Smartcard, which is provided with every Unidrive
SP,including the SP14042.2kW inverter The Smartcard enables you to:
- Store parameters and programs
- Simplify drive maintenance and commissioning
- Set sequential build of machines up quickly
- Machine upgrades can be stored on a Smartcard and sent to the
customer for installation
Other Models
| SP1201 | SP1202 | SP1203 | SP1204 | SP2201 | SP2202 | SP2203 | SP3201 | SP3202 | SP1401 | SP1402 | SP1403 | SP1404 |
| SP1405 | SP1406 | SP2401 | SP2402 | SP2403 | SP3401 | SP3402 | SP3403 | SP4401 | SP4402 | SP4403 | SP5401 | SP5402 |
