Details:

Brand: MITSUBISHI
Name: Servo amplifier
Model: MR-J2S-20CP1
Series:MELSERVO-J2-Super series.
Rated output: 200W
Voltage: 3 phase AC200VAC or single phase AC230V.
Rated speed: 3000r/min.
Whether to take the brake: No.
Shaft keyway: (open slot).
Protection level: IP55 does not include the shaft part and the connector.

Model adaptive control / advanced real time automatic tuning.
Motor series: ultra low inertia, low power.

Features:

High performance CPU integration, greatly improve product responsiveness.
Due to the application of high performance CPU, so that the response can be greatly improved.
Speed loop frequency response increased to more than 550HZ.
MR-J2-Super series is the best device for high speed positioning applications.
Easy adjustment.
Ultra low inertia is suitable for high frequency operation.

Introduction

The MR-J2S-CP AC servo amplifier with built-in positioning functions is the MR-J2S-A general-purpose AC servo amplifier which incorporate single-axis positioning functions. These functions perform positioning operation by merely setting the position data (target positions), servo motor speeds, acceleration and deceleration time constants, etc. to point tables as if setting them in parameters. The servo amplifier is the most appropriate to configure a program-free, simple positioning system or to simplify a system, for example. There are 3 points of point tables as standard, and they can be increased up to 31 points by using the MR Configurator (servo configuration software). You can choose a configuration suitable for your purpose, e.g. simple positioning system using external I/O signals (DI/O), operation using DI/O and RS-422 serial communication, or multi drop operation using RS-422 serial communication. All servo motors are equipped with an absolute position encoder as standard. An absolute position detection system can be configured by merely adding a battery to the servo amplifier. Once the home position has been set, home position return is not required at power on, alarm occurrence, etc. The MR-J2S-CP AC servo amplifier with positioning function is made easier to use and higher in function by using it with the MR Configurator (servo configuration software).

Mitsubishi MR-J2S Series Servo Drive

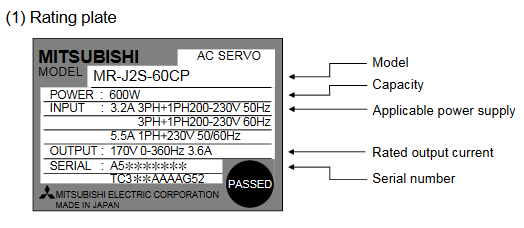

Nameplate

Model

We specialize in selling and servicing a wide range of Mitsubishi products and components:

• MDS and MR Series AC Servo Drives
• MDS and FR Series AC Spindle Drives
• FR Series General Purpose Inverters and Braking Modules
• HA / HC / HF / HP / HS Series AC Servo Motors
• SJ Series AC Spindle Motors
• CNC Boards
• Power Supplies

• All the Mitsubishi Parts are new and original with package.
• Warranty time: 180 or 360 days.
