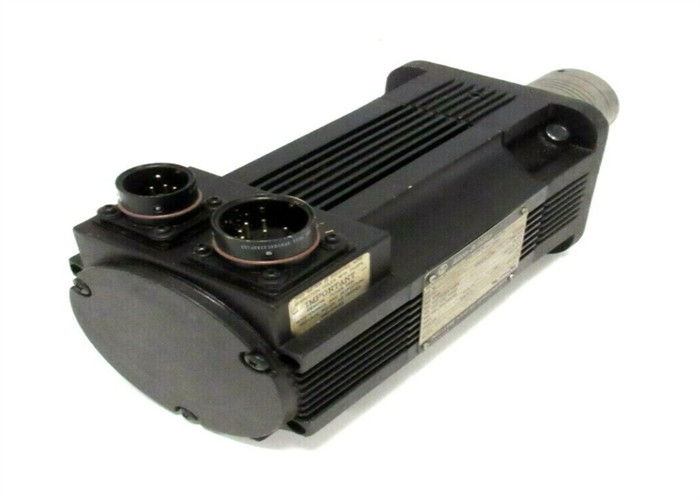

• AB 1326AB Series AC Servo Motor 460VAC Brand New In Original Box

•


• Technical Specifications for 1326AB-B430G-S2K4LS

  Manufacturer Rockwell Automation
  Brand Allen-Bradley
  Part Number/Catalog No. 1326AB-B430G-S2K4LS
  Product Type Servo Motor
  Voltage 460/380V AC
  Frame Diameter 108 mm
  Rated Motor Speed 5000 rpm

  Flange and Shaft Series N/A
  Motor Rated Torque 6.4 Nm
  Motor Rated Output 2.3 kW
  System Continuous Torque 6.4 Nm
  System Peak Stall Torque 17.2 Nm
  Standard Option 8.1 Nm Holding Brake w/ 90V DC Coil with IP67 Environmental Rating
  Product Lifecycle Status* Discontinued/Obsolete

•


  About 1326AB-B430G-S2K4LS

•
  Allen Bradley offers high-performance AC servomotors through its 1325AB line. One of those AC servomotors is the 1326AB-B430G-S2K4LS. It is an AC servomotor with a 5.88-inch frame diameter. The servomotor also produces 5,000 to 6,000 RPM. It has a 72 lb-in holding brake with a 24V DC coil. The 1326AB-B430G-S2K4LS has a total length of 25.91 inches and height of 4.38 inches. Its weight without the options is 76 pounds. It is a compact servomotor despite its high power output, which makes it cost effective considering its small footprint. The holding brake of the 1326AB-B430G-S2K4LS is a disc type that contains a spring-set once power is removed. The brake can hold the load at rest, and at the same time provide limited braking torque for emergency scenarios. Keep in mind that the internal holding brake should not be utilized as a positioning brake or to continuously cycled to help in stopping the load.


  When the holding brake is used as a parking brake, it should not be powered on and off for more than 90 times per hour. The parking brake should just hold a stationary load, and not stop a moving load unless there is a power interruption. It is important to note that the 1326AB-B430G-S2K4LS, just like other high-performance AC servomotors, lose their rating if its connector house is rotated or removed in the workplace. Parts of the motor can be damaged due to the rotation of the housing.
