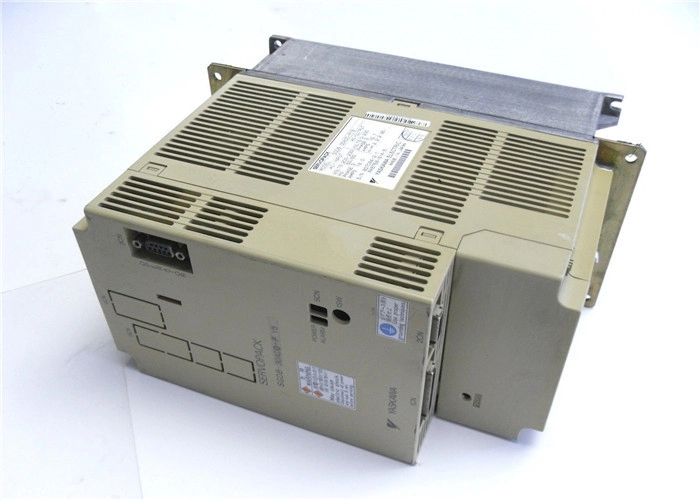

AC Servo Drives Yaskawa SGDB-30AD Brand New In Original Box 230V
Description:
| Information | SGDB-30AD is Servo Drives-AC manufactured by Yaskawa |
| Drive Type | SGDB AC Servo Drive |
| Output Value | 3.0kW |
| Supply Voltage | 200V |
| Type | Torque, Speed, Position Control |
| Applicable motor series | SGM |
| Option Specifications | None |
| Modification | None |
Type: SGDB-30AD
Kind: AC Servo Drives
Brand: Yaskawa
Guarantee: 1 year
Voltage: 200-230V
Authority: 2.9kw
Now: 18A
Phase: 3
Security module
Applicable maximum motor capacity: 0.05kw.
Power supply voltage: three-phase AC200V.
Interface: MECHATROLINK- Communication command type III (rotary
servo motor).
Design order: B.
Hardware specifications: basic installation type (standard).
Matching (software): mismatched (standard) Datasheet SGD7S-2R8A20A
PDF catalog PDF datasheet SGD7S-2R8A20A.
Matching (parameter): no matching (standard) SGD7S-2R8A20A
Optional module: security module.
European EC Standard: Based on the integration of the ISO13849-1 EN
mechanical instruction standard,
Security module with the IEC-defined individual standard 61800-5-2
security functions.
Through the combination of SGDV servo units, the best safety design
of the mechanical system is realized.
Suitable for AC servo drives, with the following safety features
specified in the international standard IEC61800-5-2 (the first in
Japan) datasheet SGD7S-2R8A20A PDF Catalog PDF datasheet
SGD7S-2R8A20A.
It can easily achieve the best safety design of mechanical systems.
Safe Off Torque (STO)
Safe Stop 1 (SS1)
Safe Stop 2 (SS2)
Safely Limited Speed (SLS)
Equipped with 2 security functions, adjustable (distribution)
security function.
With the use of servo units with security modules, so the system
can be simplified and minimized. SGMCS Small C
Capacity type direct drive servo motor.
Rated torque: M/17N.
Outer diameter size of servo motor: 290mm.
Serial encoder: 20-bit absolute value type (1 circle absolute
value) (standard).
Design sequence: the size of the outer diameter of the service
motor is marked as model E.
Flange specifications: C face, reverse load side (lead).
Optional specifications: none match.
Under conditions without a speed reducer, the load is driven
directly.
It can be realized from low speed to high speed of strong
smoothness (instantaneous maximum torque: 6~600N/m, maximum speed:
250~500r/min).
By using a 20-bit high-resolution encoder, high precision is
possible.
Convenient use of hollow, cable and piping structures.
Use example:
Semiconductor manufacturing equipment.
Liquid crystal circuit board manufacturing equipment.
Various inspection and testing equipment.
Electronic parts packaging machine.
IC information processor.
IC inspection equipment.
Various automatic machines.
Robot.
Small capacity rating and specification:
Time value: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or higher.
Using ambient temperature: 0~40 degree C.
Excitation mode: permanent magnet type.
Mounting method: flange type.
Heat resistance class: A.
Voltage withstand insulation: AC1500V 1 minute SGD7S-2R8A20A
datasheet PDF catalog PDF datasheet SGD7S-2R8A20A.
Protection mode: fully enclosed self-cooling type IP42 (except for
rotating output shaft section).
Rotation direction: clockwise rotation (CCW) on the load side below
the direction of rotation.
