Modicon Quantum PLC 140DRA84000 2 W Analogue input number 8

Specifications OF Modicon Quantum PLC 140DRA84000
Range of product Modicon Quantum automation platform
Product or component type Analogue input module
Type of filter Single pole low pass - 3 dB at 15 Hz +/- 20 %
Complementary
Analogue input number 8
Input type Differential
Addressing requirement 9 input words
Analogue input resolution 12 bits
linear measuring range 1...5 V 4...20 mA
Absolute maximum input 50 V DC 25 mA
Input impedance 250 Ohm current +/- 0.01 % > 20 MOhm voltage
Absolute accuracy error +/- 0.05 % of full scale +/- 0.1 % of full scale maximum
Linearity error +/- 0.04 %
Accuracy drift according to temperature +/- 0.0025 % of full scale/°C <= 0.005 % of full scale/°C
Common mode rejection > - 72 dB 60 Hz
Isolation between channels and bus 1000 V DC 3000 V DC for 60 s
Isolation between channels 30 V DC
Update time 5 ms
Fault type Broken wire 4...20 mA
Undervoltage range 1...5 V
Marking CE
Local signalling
1 LED (green) for bus communication is present (Active)
1 LED (red) for external fault
8 LEDs (green) for channel is turned on
8 LEDs (red) for channel fault
Bus current requirement 240 mA
Power dissipation in W 2 W

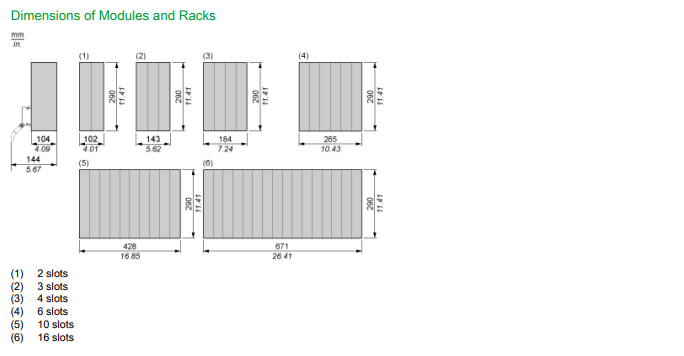

Module format Standard
Net weight 0.3 kg
Environment Standards UL 508 CSA C22.2 No 142
Product certifications
FM Class 1 Division 2 cUL
Resistance to electrostatic discharge
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields
10 V/m 80…1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0…60 °C
Ambient air temperature for storage -40…85 °C
Relative humidity 95 % without condensation
Operating altitude <= 5000 m
