1606-XLS240E Redundant Power Supply Module 24V,10A Single Phase Input

SPECIFICATION QUICK REFERENCE OF Redundant Power Supply Module 1606-XLS240E

POWER SUPPLY

Ultra-small size
Extra-low inrush current Active power factor correction
Wide range AC/DC input; auto select input
Superior reserve power (can support 150% rated power for five
seconds)
Superior efficiency and temperature rating

DC-OK and overload LED

Output voltage DC 24V
Adjustment range 24-28V
Output current 10A continuous, 24V
15A for typ. 4s, 24V
Output power 240W continuous, 24V
360W for typ. 4s, 24V
Output ripple < 50mVpp 20Hz to 20MHz

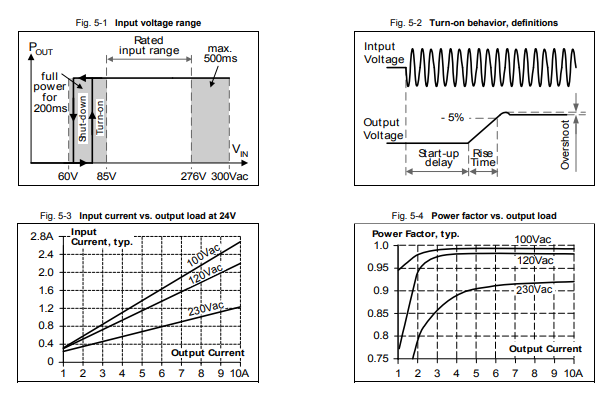

Input voltage AC 100-240V ±15%
Line frequency 50-60Hz ±6%
AC Input current 2.22 / 1.22A at 120 / 230Vac
Power factor 0.98 / 0.92 at 120 / 230Vac
AC Inrush current typ. 4 / 7A peak at 120 / 230Vac
DC Input voltage DC 110-300V - -20%/+25%
DC Input current 2.37 / 0.87A at 110 / 300Vdc
Efficiency 92.3 / 93.0% at 120 / 230Vac
Losses 20.0 / 18.1W at 120 / 230Vac
Temperature range -25°C to +70°C operational
Derating 6W/°C +60 to +70°C
Hold-up time typ. 27 / 28ms at 120 / 230Vac

Dimensions 60x124x117mm WxHxD
