    EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA

    Ask Lasest Price
    Brand Name : EBMPAPST
    Model Number : D2E097-CB11-32
    Certification : CE
    Price : Contact us
    Payment Terms : T/T
    Supply Ability : 50
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

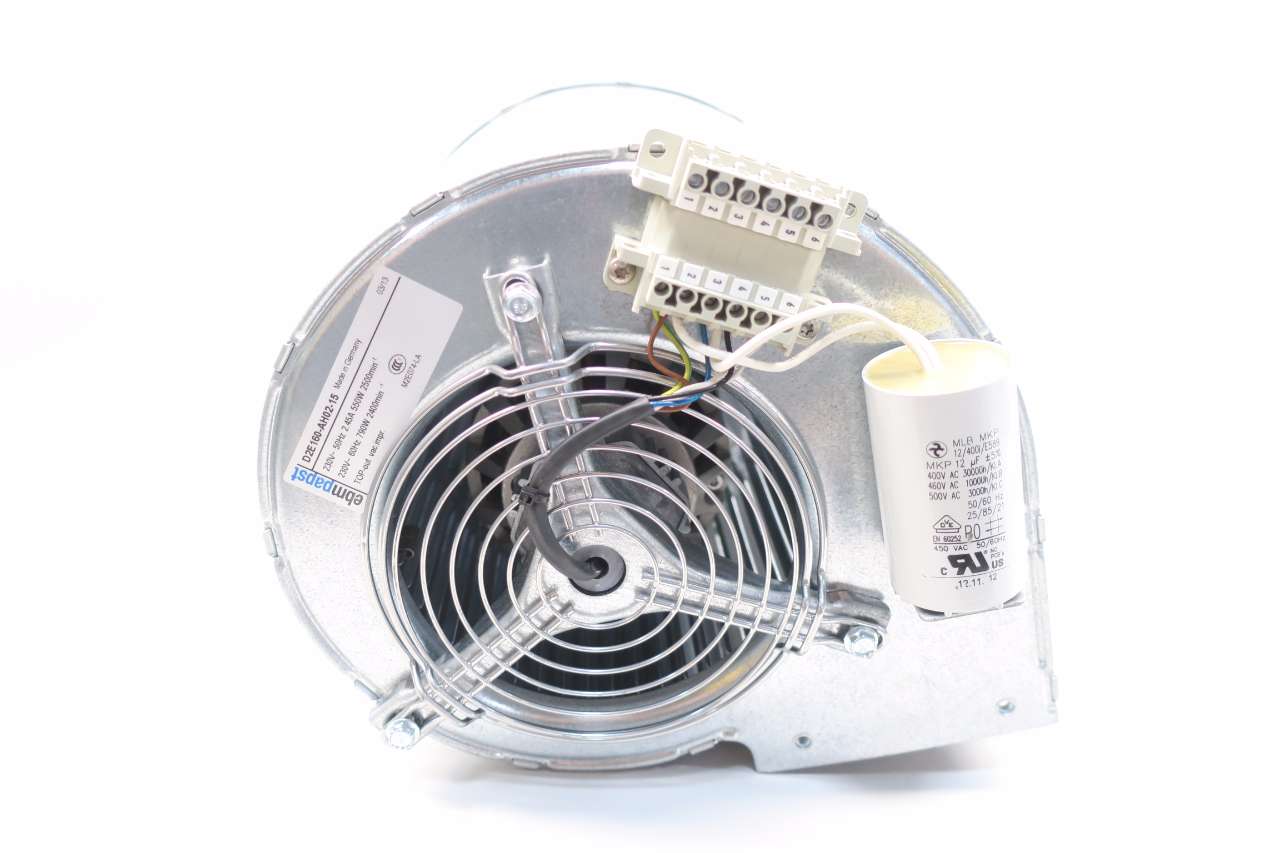

    EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA

    EBMPAPST 115VAC Blower D2E097-CB11-32 Centrifugal Cooling FAN 120CFM; 43W; 47dBA


    Description

    Centrifugal Cooling Fan assembly, complete with motor for ACS800 Inverter Drive.
    Type: D2E097-CB11-32
    Blower; Centrifugal; 115VAC; 144x137mm; Scroll; 120CFM; 43W; 47dBA; Leadwires



    Models of D2E097 Series:

    D2E097-BI56-02
    D2E097-BI56-83
    D2E097-BI56-E7
    D2E097-BI56-E9


    Spare for:

    ACS800-104-0170-3,
    ACS800-104-0210-3,
    ACS800-104-0210-5,
    ACS800-104-0210-7,
    ACS800-104-0260-3,
    ACS800-104-0260-5,
    ACS800-104-0260-7,
    ACS800-104-0320-3,
    ACS800-104-0320-5,
    ACS800-104-0320-7,
    ACS800-104-0390-3,
    ACS800-104-0400-5,
    ACS800-104-0400-7,
    ACS800-104-0440-7,
    ACS800-104-0460-5,
    ACS800-104-0510-3,
    ACS800-104-0580-7,
    ACS800-104-0610-5.


    Specifications:

    Air Flow120 CFM
    Bearing TypeBall
    Blower TypeCentrifugal
    ConfigurationScroll
    Dimensions5.67 x 5.39 (144 x 137)In. (mm)
    Frequency60 Hz
    MaterialMetal
    Noise Level47 dBA
    Power Rating43 W
    RotationCW
    SeriesD2E097 Series
    Temperature, Operating, Maximum60 C
    TerminationLeadwires
    Voltage Rating115 VAC
    Weight2.69 Lbs.



    Features:

    • AC Dual Inlet Forward Curved Centrifugal Blower
    • Via a Bracket, the Integrated External-Rotor Motor Is Mounted on One Side of the Housing
    • Housing and Impeller of Galvanized Sheet-Steel
    • Forward Curved Impellers Are Directly Press-Fitted onto the Rotor of the External-Rotor Motor
    • Direction of Rotation Is CW as Seen From Suction Side
    • Insulation Class “B”
    • Maintenance-Free Ball Bearings


    Description of Centrifugal fans

    Centrifugal fans from ebm-papst are available with forward or backward curved blades. The

    outstanding feature of the external rotor motors is their compact, flat design, which results from
    integrating the external rotor motor into the impeller. "Blowers" refers to devices with scroll

    housing, while centrifugal fans are shipped without scrolls.

    Similiar Centrifugal fans for ABB Variable Frequency Inverter
    Part no : D2D160- BE02-11 64650424
    Part no : D2D160-BE02-11
    Part no : D2D160-BE02-12
    Part no : D2D160-BE02-12 68281334
    Part no : D2D160-BE02-14
    Part no : D2D133-DB02-06
    Part no : D2D146-AA28-28
    Part no : D2E133-AM35-B4
    Part no : D2E097-CB01-02
    Part no : D2E133-AM47-01
    Part no : D2E133-CI33-56
    Part no : D2E133-DM47-01
    Part no : D2E146-AP43-22
    Part no : D2E146-AP47-22
    Part no : D2E160-AB01-06
    Part no : D2E160-FI01-01
    Part no : D2E146-HR93-01
    Part no : D2E097-BK66-02
    Part no : D2E097-BK66-48
    Part no : D2E097-CH85-02
    Part no : D2E097-CH85-48
    Part no : D2E133-DM47-23
    Part no : D2E146-AP43-02
    Part no : D2E146-AP47-02
    Part no : D4E225-CC01-02
    Part no : D4E225-CC01-30
    Part no : D4E225-CC01-39
    Part no : D2E140-HR97-07
    Part no : D2E146-KA45-01
    Part no : D2E146-KB27-01
    Part no : D2E146-HR93-03
    Part no : D2E146-HS97-03
    Part no : D2E160-FK11-02
    Part no : D4E146-LV19-14
    Part no : D4D180-CB01-02
    art no : D4D200-CA01-02
    Part no : D4D225-FH02-01
    Part no : D4D225-GH02-01
    Part no : D4E160-DA01-02
    Part no : D4E160-EG06-05
    Part no : D4E160-FH12-05
    Part no : D4E180-BA02-02
    Part no : D4E180-CA02-02
    Part no : D4E200-CA02-02
    Part no : D4E225-BC01-02
    Part no : D4E225-DH01-01
    Part no : D4E225-EH01-01
    Part no : D6E225-FB07-02


    Others:

    RF2C-140/059 K147 SF
    RF2C-140/059 K097 SF
    RF2C-146/062 K124 SF
    RF2C-160/062 K117 SF

    RF2C-140/059 K147 I
    RF2C-140/059 K097 I
    RF2C-146/062 K124 I
    RF2C-160/062 K117 I
    RF2C-180/052 K000 I
    RF2C-140/059 K147
    RF2C-140/059 K097
    RF2C-146/062 K124
    RF2C-160/062 K117
    RF2C-180/052 K000
