GE IC694MDL230 50/60 Hz 120 volts AC 0 to 132 volts AC 60 mA from 5 V bus

Product information GE IC694MDL230 :

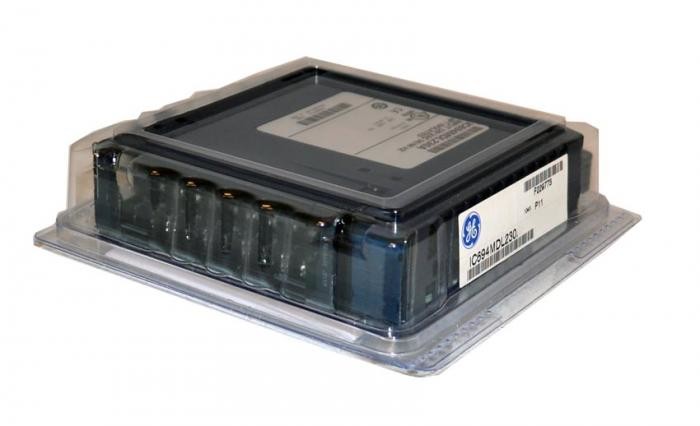

The IC694MDL230 is 120-volt, 8-point Isolated Input Module manufactured by GE Fanuc belonging to the RX3i PACSystems series. Each of the eight points is powered separately by an AC source. The input voltage range spans from 0 to 132 VAC running at an input current of 14.5 mA with a frequency of 50/60 Hz. With all inputs turned ON, the module’s power consumption is 60 mA provided by a 5 VDC bus located on the backplane.

The IC694MDL230 has reactive input circuits, meaning the circuits are comprised of both resistors and capacitors. The module’s input characteristics allow compatibility with variety of devices such as limit switches, push buttons, and proximity switches. Power for the IC694MDL230 is supplied by the user. It is important to note that the module runs only on AC power; DC power is not applicable.

The module has eight green LEDs located on the block, which are used to indicate the ON or OFF status of the eight points. Red bands on the block warn the user that the IC694MDL230 is a high voltage input module. The module is installable on any slot in the Rx3i system.

More information:

IC694MDL230 's details:

Another module:

IC694MDL230	120 VAC Isolated Input (8 Points)
IC694MDL231	240 VAC Isolated Input (8 Points)
IC694MDL240	120 VAC Input (16 Points)
IC694MDL241	24 VAC/VDC Input (16 Points)
IC694MDL250	120 VAC Isolated Input (16 Points)
IC694MDL260	120 VAC Input (32 Points)**
IC694MDL632	125 VDC Input (8 Points)
IC694MDL634	24 VDC Input, Neg/Pos Logic (8 Points)
IC694MDL645	24 VDC Input, Neg/Pos Logic (16 Points)
IC694MDL646	24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points)
IC694MDL654	5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points)
IC694MDL655	24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points)
IC694MDL660	24 VDC Input (32 Points)**
IC694ACC300	Input Simulator Module (8 Points)
