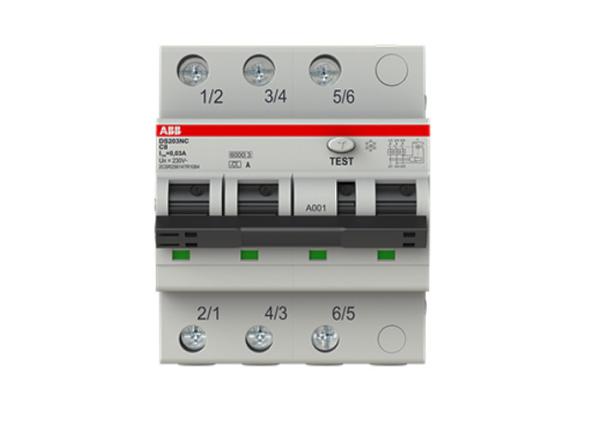

2CSR256147R1084 Current Circuit Breaker DS203NC C8 A30 230V 3P+N

Product Information Of : 2CSR256147R1084 DS203NC C8 A30 230V

DS203NC 230V is a 3P+N residual current circuit breaker with overcurrent protection (RCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts (30 mA versions). The new series is suitable for installation in IT 3P systems without neutral with 230V between the phases.

General info :

Article number : 2CSR256147R1084

Catalog Description : DS203NC C8 A30 230V Residual Current Circuit Breaker with Overcurrent Protection

Invoice Description : DS203NC C8 Residual Current Circuit Breaker

Tripping Characteristic : C

Type of Residual Current : A Type

Rated Voltage (Ur) : 230-240 V AC

Rated Operational Voltage : 230 V AC

Rated Insulation Voltage (Ui) : 500 V

Rated Impulse Withstand Voltage (Uimp) : 4 kV

Input Voltage Type : AC

Rated Current (In) : 8 A

Rated Residual Current : 30 mA

Rated Short-Circuit Capacity : (230 / 400 V AC) 6 kA

Minimum Order Quantity : 1 piece

Order Multiple : 1 piece

Technical :

1, Frequency (f) : 50/60 Hz

2, Power Loss : 4.2 W

3, Power Supply Connection : Arbitrary

4, Energy Limiting Class : 3

5, Electrical Endurance : 10000 cycle

6, Mechanical Endurance : 20000 cycle

7, Number of Poles : 4

8, Number of Protected Poles : 3

9, Operating Characteristic : Instantaneous

Categories :

Products » Low Voltage Products and Systems » Modular DIN Rail Products » Residual Current Devices RCDs » Residual Current Circuit Breakers with Overcurrent Protection RCBO
