IC695PNS001 GE Emerson Automation manufactured Profinet scanner
module
Specifications for PLC Programmable Logic Controller IC695PNS001
Protocol Support PROFINET
LED Indicators OK LED, LAN LED, STATUS LED, CONN LED, ORT LEDs,
ACTIVE LED, USB LED
Supported Topologies Linear, Star, Daisy chain, Redundant Media
Ethernet Ports Four (4) Switched Ethernet ports
Storage Temperature -40 to 85 degrees Celsius
Operating Temperature 0 to 60 degrees Celsius
Internal Power at 3.3 V DC 1.2 A
Internal Power at 5 V DC 1.1 A
USB Ports 1 Micro USB
Brand GE Intelligent Platforms/GE Fanuc
Backplane Support Universal
Number of Slots 1 (single slot)
Product Type PROFINET Scanner Module
Catalog IC695
Product Line RX3i
Brand GE Intelligent Platforms/GE Fanuc
Part Number IC695PNS001
Series RX3i PacSystem
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- | Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- | Emerson VE-,KJ- |
| Honeywell TC-,TK- | GE Modules IC - |
| ABB Module | AB Module 1756-,1759- Tourch Screen 2711- |
| Mitsubishi Drive MR- , Motor HA -,HC | Emerson MoudlesVE- ,KJ - |
| Fanuc motor A0-, Drive | Yokogawa transmitter EJA- |
| Rosemount Transmitter 3051- | Schneider Module 140- |
| Panasonic Motor , Drive MH- | Siemens Module 6ES-, Touch Screen 6AV- |

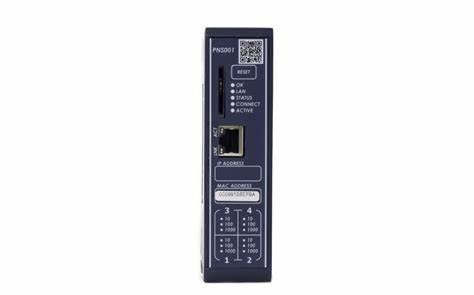

The IC695PNS001 is a Profinet scanner module that is manufactured
by GE Fanuc / Emerson Automation. This module is a single slot wide
module, that is used to manage Profinet connections such as
communicating to remote I/O devices residing in universal I/O
backplanes, whether Series 90-30 or RX3i modules; Sending I/O data
through the Profinet network to the partner CPUs in the network;
Communicate with Human Machine Interface (HMI), Supervisory Control
and Data Acquisition (SCADA) and other similar automation
components.
The IC695PNS001 features One (1) micro USB port that is mainly used
in performing firmware upgrades. It is also equipped with Four (4)
Ethernet communication ports that primarily support Profinet
protocol. Each of the ports supports modern communication speeds
such as 10/100/1000 Mbps communication speed and supports a variety
of topologies such a Liner, Daisy-chain, Star, Ring or redundant
Ethernet media topology. Additionally, Two (2) of the IC695PNS001’s
ethernet port are Two (2) Small Form Factor (SFP) pluggable cages
that may be installed with SFP modules for converting network to
Fiber Optic media.
The IC695PNS001 is designed with simplified configuration method.
I/O device name, IP address and other parameters may be saved in an
SD card and transferred to other Profinet Scanner module by
inserting the same SD card. This method eliminates dependency with
software configuration tool and significantly decreases maintenance
time.
The IC695PNS001 occupies a single slot of the backplane with status
LED indicators mounted on the module’s front panel. It has OK LED,
LAN LED, STATUS LED, CONN LED, individual PORT LEDs, ACTIVE LED and
USB LED. These LED indicators provided comprehensive overview of
the module’s operational state.
The IC695PNS001 has an internal power rating of 1.2 Amps at 3.3
Volts DC or 1.1 Amps maximum at a rated voltage of 5 Volts DC. This
module supports the Proficy Machine Edition version 8.50 or later
versions of the software. The operating temperature range for this
module is 0 to 60 degrees Celsius, and it comes with 2 SFP and 2
RJ-45 cages with the SFP devices available separately.
When the network communications are lost, the IC695PNS001 PROFINET
scanner module helps to manage the input and output states
depending on the specific configurations of a module. This module
features 4 switched Ethernet ports, it supports the daisy chain,
star, or ring topologies.
