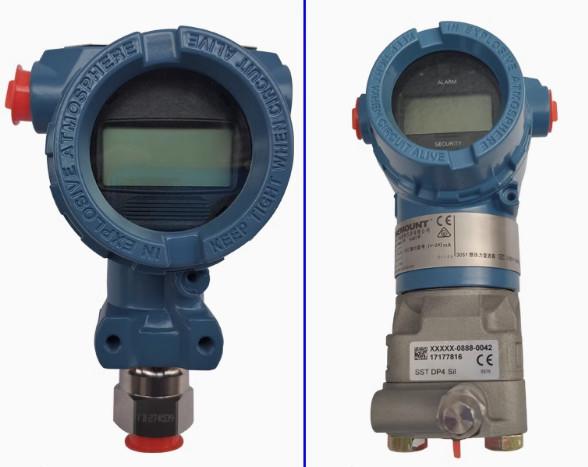

Emerson Rosemount 3051TG5A2B21AB4M5 - Rosemount 3051T Pressure Transmitter

Part Number

3051TG5A2B21AB4M5

Pressure Type

Gauge

Pressure Range

-14.7 to 10,000 psig (+$300.88)

Output

4-20mA with digital signal based on HART protocol

Wireless Sensor Module Material

N/A

Process Connection

1/2-14 NPT Female

Isolating Diaphragm

316L SST (316L SST process connection)

Fill Fluid

Silicone

Housing Material

Polyurethane covered aluminum

Conduit Entry Size

1/2-14 NPT

Wireless Options

Not included

Local Bluetooth Device Access

Not included

Warranty

1-year

PlantWeb Functionality

None

Assembly Option

None

Mounting Brackets

SST Coplanar flange bracket for 2 inch pipe or panel mount (+$93.05)

Hazardous Location Certification

Not included

Custody Transfer

Not included

Shipboard Approvals

Not included

Calibration Certification

Not included

Material Traceability Certification

Not included

Quality Certification for Safety

Not included

Enhanced Safety

Not included

Display

LCD (+$464.80)

Configuration Buttons

None

Conduit Plug

Carbon steel

Transient Protection

Not included

Software Configuration

Standard

Alarm Levels

None

Hydrostatic Pressure Test

Not included

Process Area Cleaning

Not included

External Ground Screw Assembly

Not included

NSF Drinking Water Approval

Not included

NACE Certificate

Not included

Seal System Report

Only available when assembled to remote seal

Conduit Electrical Connector

Not included

HART Configuration

Revision 5

Enhanced Software

Not included

Rosemont 3051GP Pressure Transmitter

Rosemount™ 3051 Coplanar™ Pressure Transmitter
Benefit from industry-leading performance and patented technology with the Rosemount 3051 Coplanar Pressure Transmitter. With over 10 million devices installed, this pressure transmitter family offers an all-in-one solution for pressure, level and flow measurement. Engineered with a coplanar flange for installation and appliSAARion flexibility, this transmitter is easy to install and designed with direct process mounting capability for cost-effective installation and efficiency.

Rosemont 3051GP pressure transmitter is after 40 years in power industry of the United States Rosemount Inc test pressure transmitter is one of a series of products. With the design of high reliability, long term stability and easy maintenance. No matter from the design to the installation, maintenance to the operation can be optimized measurement concept.

Features

* 3051GP series has high reliability, long term stability and easy to maintain and design.
* Pressure range is from 0-1.5psi to 0-4000psi (from 0-10 to 0-27580kpa)
* Reference accuracy is 0.075%
* Range rate: 100:1
* Due to its characteristics of light weight and compact size, so that can conductive to realized easy installationand carry.
* Can be reached to 5-year stability.
* AppliSAARion to measure liquid, gas and steam.
